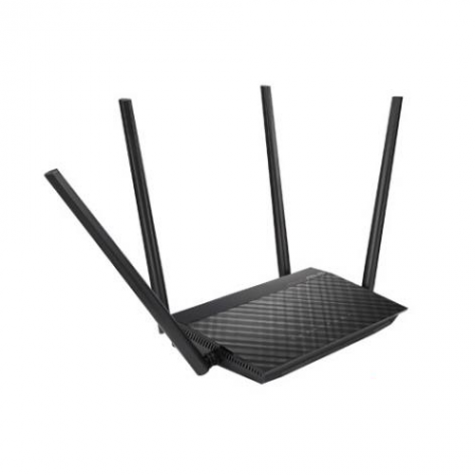

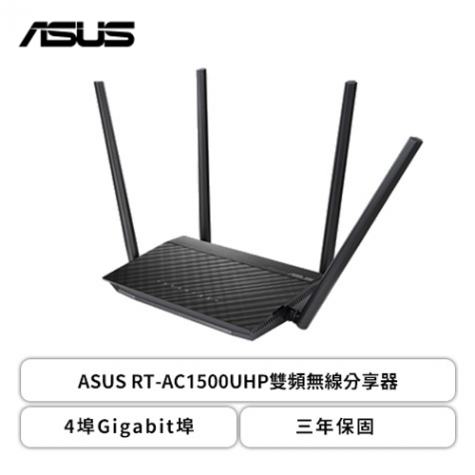

RT-AC1500UHP(Dual-Band/1467Mbps)
商品規格
型號
RT-AC1500UHP
網路技術標準
IPv6
IPv4
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
傳輸量
802.11ac:最高 867 Mbps
802.11n:最高 600 Mbps
802.11g:最高 54 Mbps
802.11b:最高 11 Mbps
802.11a:最高 54 Mbps
天線
External antenna x 4
傳送 / 接收
5GHz 2x2
2.4GHz 4x4
MIMO 技術
處理器
74Kc MIPS processor with 64 KB I-Cache and 32 KB D-Cache, targeted to operate at up to 775 MHz
記憶體
16 MB Flash, 128 MB RAM
網速提升
Beamforming: 802.11ac Explicit transmit beamforming (TxBF) and Legacy implicit TxBF for both beamformer and beamformee
256-QAM high data rate
20/40/80 MHz bandwidth
運作頻率
2.4G Hz / 5 GHz
Operating Mode
Accesspoint, Mediabridge, Router
網路埠規格
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 2.0 x 1
按鈕
WPS Button, Reset Button, Power Button
LED 指示燈
Power x 1
Wi-Fi x 2
WAN x 1
USB x 1
LAN x 4
電源規格
AC Input : 100V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current
包裝內容物
RT-AC1500UHP Gigabit Wi-Fi Router
RJ-45 Cable
Quick Start Guide
Power Adapter
Warranty Card
產品淨重(g)
348 g
Product Dimensions
192x125 x 30 ~ mm (WxDxH) (Without Bezel)
家長貼心管理
Parental Control, Parental Control Customized Internet schedule
Guest Network
Guest Network, • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3, Guest Network Encryption : Open system, WPA/WPA2-Personal
Security
Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPS, SSH, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64
VPN
VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Server OVPN, VPN Server PPTP
網路流量控制
Bandwidth limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, -- Maximum Traditional QoS Rule : 32, Traffic Monitor, Real-time traffic monitor, Wired Traffic Monitor, Wireless Traffic Monitor, • Traffic Analysis Period : Daily, Weekly, Monthly
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, 3G/4G LTE dongle, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server, 有, IPTV, Manually assign IP address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)
其他無線功能
UTF-8 SSID, WiFi MAC address filter, • Maximum MAC Filters : 64, Wireless scheduler, Airtime fairness, RADIUS Server, Universal beamforming, Explicit beamforming
USB埠應用
File System : FAT16, FAT32, NT3G, ext2, ext3, Safely Remove disk, AiDisk, Media Server, Samba Server, FTP Server, Shared Folder privileges
管理功能
Configuration backup and restore, Diagnosis tools, Feedback system, System log
