商品規格

型號

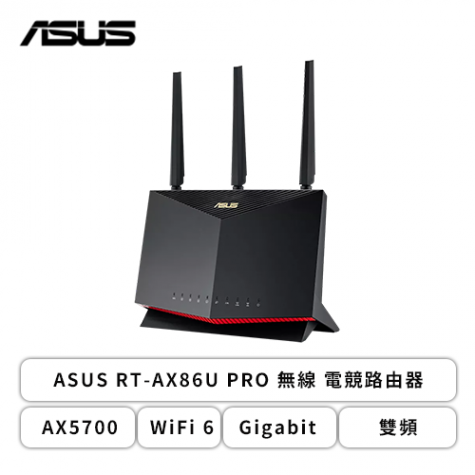

RT-AX86U Pro
網路技術標準
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
產品規格
AX5700 極致網速 : 861+4804Mbps
AX技術
有
傳輸量
802.11a：最高 54 Mbps
802.11b：最高 11 Mbps
802.11g：最高 54 Mbps
802.11n：最高 450 Mbps
802.11n (1024QAM)：最高 750 Mbps
802.11ac (1024QAM)：最高 4333 Mbps
802.11ax (2.4GHz)：最高 861 Mbps
802.11ax (5GHz)：最高 4804 Mbps
天線
External antenna x 3
Internal PCB antenna x 1
傳送 / 接收
2.4GHz 3x3
5GHz 4x4
處理器
2.0GHz quad-core processor
記憶體
256 MB Flash and 1 GB RAM
網速提升
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
運作頻率
2.4 GHz / 5 GHz

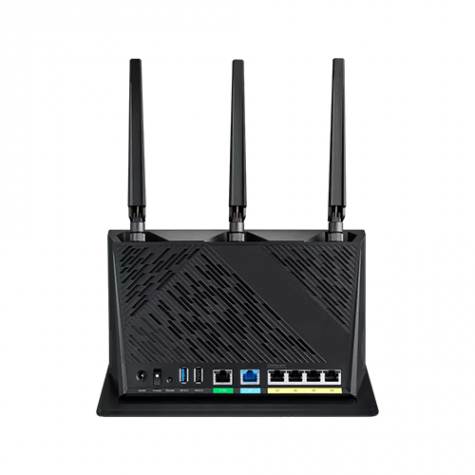

網路埠規格
RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
2.5G/1Gbps multi-Gig port (configurable)
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen1 x1, 2.0 x1
按鈕
WPS Button, Reset Button, Power Switch, LED on/off Button
LED 指示燈
Power x 1
2.4GHz x 1
5GHz x 1
2.5G Port x 1
WAN x 1
LAN x 4
WPS x 1
電源規格
19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current or
12 V with max.3 A current / 19.5 V with max. 2.31 A current
包裝內容物
RT-AX86U Pro WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
產品淨重(g)
814.5 g
獨家AiMesh技術
AiMesh
Primary AiMesh router
AiMesh node
Router APP
有
遊戲加速
有
Alexa
有
AiProtection
AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
家長貼心管理
Parental Control
Parental Control Customized Internet schedule
Maximum Parental Control profile : 64
Maximum Parental Control content filter rule : 64
網路流量控制
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history
其他無線功能
IPv6
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
Let's Encrypt
Safe browsing
DNS-over-TLS
LAN
DHCP Server
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64
VPN
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
USB埠應用
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
管理功能
Operating mode : Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update
