規格表
WiFi standards WiFi 6E (802.11ax)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
802.11g
802.11b
802.11a
WiFi speed 2.4GHz AX: 2x2(Tx/Rx) 1024/256-QAM 20/40MHz, up to 574Mbps
5GHz AX: 2x2(Tx/Rx) 1024/256-QAM 20/40/80MHz, up to 1201 Mbps
6GHz AX: 4x4(Tx/Rx) 1024/256-QAM 20/40/80/160MHz, up to 4804 Mbps
Operating Frequency 2.4GHz / 5GHz/ 6GHz
WiFi encryption WPA-PSK
WPA2-PSK
WPA3-PSK
WiFi features MU-MIMO
OFDMA
1024-QAM
Beamforming
Guest WiFi/ Multiple SSID
Smart connect
WPS
WiFi schedule
Dimensions 338x224x198 mm/ 13.3x8.8x7.8 inch
Weight 1.13kg / 2.5lb

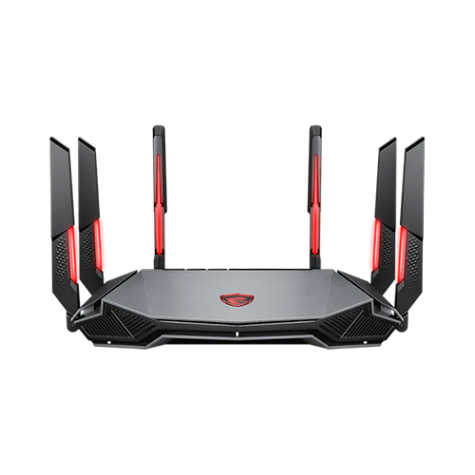

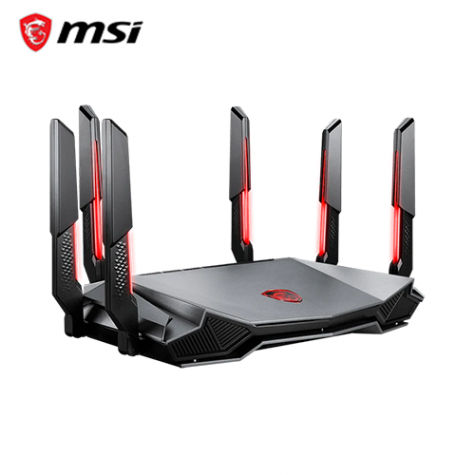

Package Contents RadiX AXE6600 WiFi 6E Tri-Band Gaming Router (GRAXE66)
Ethernet cable
Quick start guide
Power adapter
Antenna High-performance RGB antenna x 6
Processor Quad-core 1.8GHz processor
Memory 256MB flash and 512MB DDR4 RAM
Parental Control Web & App Filter
Customized Internet schedule
Traffic Control AI QoS
Traditional QoS
Bandwidth limiter
Real-time traffic monitor
Firewall DOS
Access Control : Service / IP
Inbound Filter
URL Filter
WAN WAN Type : DHCP / Static IP / PPPoE / PPTP / L2TP
Port triggering
Port forwarding
DMZ
NAT Passthrough : PPTP / L2TP / IPSec / RTSP / H.323 / SIP / PPPoE
UPnP
DDNS
Wired interface 2.5 Gigabits port for WAN/LAN x1,
Gigabit port for WAN/LAN x1,
Gigabit port for LAN x3,
USB 3.0 Gen 1 x1
USB application Media Server
Samba Server
FTP Server
Safely Remove
Button Dragon Shield, WPS, WiFi, LED,
Power, Reset
LED Indicatior Power,
Internet,
LAN 1-4
Management Web GUI
MSI Router app (iOS and Android)
MSI center
Operation mode Router mode
AP mode
Power Supply AC Input : 100V~240V(50/60Hz)
DC Output : 12 V with max. 3.5 A
