商品規格

網路技術標準
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
IPv4
IPv6

產品規格
AXE7800 ultimate AX performance : 574+4804+2402 Mbps

傳輸量
802.11a：最高 54 Mbps
802.11b：最高 11 Mbps
802.11g：最高 54 Mbps
802.11n：最高 300 Mbps
WiFi 5 (802.11ac) : up to 500 Mbps
802.11ac (1024QAM)：最高 2167 Mbps
802.11ax (2.4GHz)：最高 574 Mbps
802.11ax (5GHz)：最高 4804 Mbps
WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps

天線
External antenna x 6 (non-detachable)

傳送 / 接收
2.4GHz 2x2
5GHz 4x4
6GHz 2x2

處理器
1.7GHz quad-core processor

記憶體
256 MB Flash and 512 MB DDR4 RAM

網速提升
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth

運作頻率
Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz

Operating Mode
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

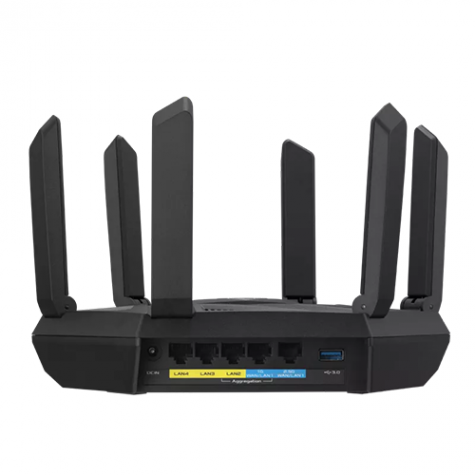

網路埠規格
RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x 3, USB 3.2 Gen 1 Port x 1,

按鈕
Power on/off switch Reset Button WPS Button

LED 指示燈
Power x 1 2.4GHz x 1 5GHz x 1 6HGz x 1 2.5G WAN/LAN1 x 1 1G WAN/LAN1 x 1 1G LAN x 3

電源規格
AC Input : 110V~240V(50~60Hz) DC Output: 12 V with max. 3.0 A current

包裝內容物
RT-AXE7800 WiFi Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card

產品淨重(g)
1033g

Product Dimensions
243*223*155 mm

獨家AiMesh技術
AiMesh
Primary AiMesh router
AiMesh node

家長貼心管理
Parental Control
Safe Browsing
Parental Control Customized Internet schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64

Guest Network
Guest Network
• Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS

Security
AiProtection
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

VPN
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

網路流量控制
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
Website history

WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay

LAN
DHCP Server
有
IPTV
LAN Link Aggregation
Manually assign IP address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)

其他無線功能
UTF-8 SSID
WiFi MAC address filter
• Maximum MAC Filters : 64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming

USB埠應用
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges

管理功能
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
