商品規格

型號

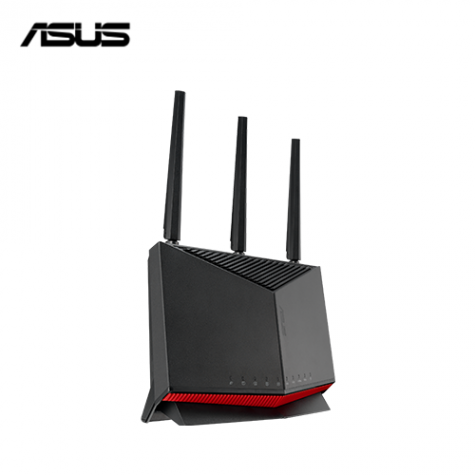

RT-BE86U
網路技術標準
IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

產品規格
BE6800 ultimate BE performance : 1032+5764 Mbps

傳輸量
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps

天線
External antenna x 3； Internal antenna x 1

傳送 / 接收
5GHz 4x4
2.4GHz 3x3

處理器
2.6GHz quad-core processor

記憶體
256 MB Flash and 1 GB RAM

網速提升
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

運作頻率
5 GHz
2.4 GHz

Operating Mode
Repeater Mode
Media Bridge Mode
Access Point Mode
AiMesh Node Mode
Wireless Router Mode

網路埠規格
1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1

按鈕
WPS Button, Reset Button, Power Switch, LED on/off Button

LED 指示燈
WAN x1
10G Port x1
LAN x4
USB x1
2.4GHz x1
5GHz x1
Power x1

電源規格
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current

包裝內容物
RT-BE86U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

產品淨重(g)
854 g

Product Dimensions
235*90*316 mm

獨家AiMesh技術
AiMesh, Primary AiMesh router, AiMesh node

遊戲加速
Mobile Game Mode, Gear Accelerator, OpenNAT (Game Profile), Gaming Port

家長貼心管理
Parental Control, Web & Apps Filters, Time Scheduling, Safe Browsing, Parental Control Customized Internet schedule, • Maximum Parental Control Profile : 64, • Maximum Parental Control Content Filter Rule : 64

Guest Network
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings.", Support Guest Network Pro, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5, Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

Security
AiProtection, VPN, WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection
AiProtection Pro, AiProtection, Malicious site blocking, Two-Way IPS, Infected Device Prevention and Blocking

VPN
Instant Guard, VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark

網路流量控制
Adaptive QoS, Bandwidth Monitor, Bandwidth limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, Real-time traffic monitor, Wired Traffic Monitor, Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, Website history

WAN
• IPSec
• Static IP
• Automatic IP
• L2TP
• PPTP
• PPPoE
Internet Connection Type :, Dual WAN, WAN Aggregation, 3G/4G LTE dongle, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, • PPPoE Relay
• SIP Pass-Through
• H.323 Pass-Through
• RTSP Pass-Through
• IPSec Pass-Through
• L2TP Pass-Through
• PPTP Pass-Through
NAT Passthrough :

LAN
DHCP Server, 有, IPTV, LAN Link Aggregation, Manually assign IP address, • Maximum Manually Assign IP Address Rule : 128, Wake on LAN (WOL)

其他無線功能
UTF-8 SSID, WiFi MAC address filter, • Maximum MAC Filters : 64, Wireless scheduler, Airtime fairness, RADIUS Server, Universal beamforming, Explicit beamforming

USB埠應用
• ext4
• ext3
• ext2
• vFAT
• NTFS
• HFS+
File System :, Safely Remove disk, AiCloud, Download master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder privileges

User Interface
WEB: ASUSWRT, APP: ASUS Router APP

管理功能
Configuration backup and restore, Diagnosis tools, Feedback system, System log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
