商品規格
型號

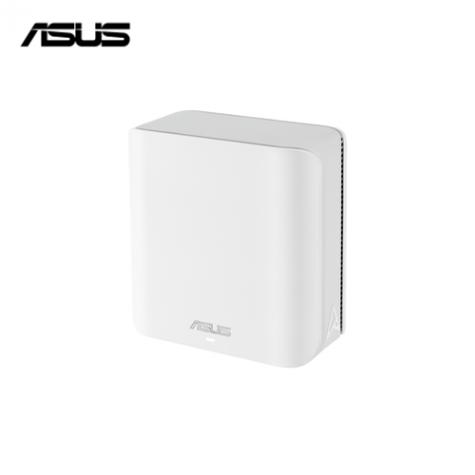

ASUS ZenWiFi BD5
型號
BD5(W-1-PK)
網路協定
IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
無線速率
BE5000 ultimate BE performance : 688+4323 Mbps
傳輸速率
WiFi 7 (802.11be) (5GHz): up to 4323 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
天線數量
Internal antennas x 4
傳送 / 接收
5GHz 2x2
2.4GHz 2x2
處理器
1.5GHz quad-core processor
記憶體
RAM 512MB , Flash 128MB
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/240 MHz bandwidth (The availability of 240 MHz depends on the country)
無線頻段
5 GHz
2.4 GHz
Operating Mode
Access Point Mode
AiMesh Node Mode
Wireless Router Mode
網路連接埠
2.5G x 2 (WAN/LAN auto detecting)
Buttons
WPS button, Reset button, Power switch
LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max 1.5A current
Package Content
ZenWiFi BD5
RJ45 cable
Power adapter
Warranty card
Quick start guide
產品尺吋(長*寬*高) mm
140 x 70 x 140 mm
Remark
Content may vary in different regions and packages.
AiMesh
AiMesh, Primary AiMesh router, AiMesh node
家長貼心控管
Parental Control, Web & Apps Filters, Time Scheduling, Reward, Parental Control - Safe Browsing, Parental Control Customized Internet schedule
Router APP
有
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network.", Guest Network
Security
AiProtection, VPN, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, Security Scan, Firewall
AiProtection
AiProtection Pro, Router Security Assessment, Malicious site blocking, Two-Way IPS, Infected Device Prevention and Blocking
VPN
Instant Guard, VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
流量控管功能
Adaptive QoS, Bandwidth Monitor, Bandwidth limiter, Traditional QoS, Traffic Monitor, Traffic Analyzer, Website history
WAN
Port forwarding, Port triggering, DMZ, DDNS
LAN
DHCP Server, IGMP snooping, IPTV, Manually assign IP address, Wake on LAN (WOL)
Wireless
MU-MIMO, UTF-8 SSID, WiFi MAC address filter, Wireless scheduler, Airtime fairness, RADIUS Server, Universal beamforming, Explicit beamforming
管理功能
Diagnosis tools, Feedback system, System log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
Smart Home
Support Google Assistant
