商品規格

型號

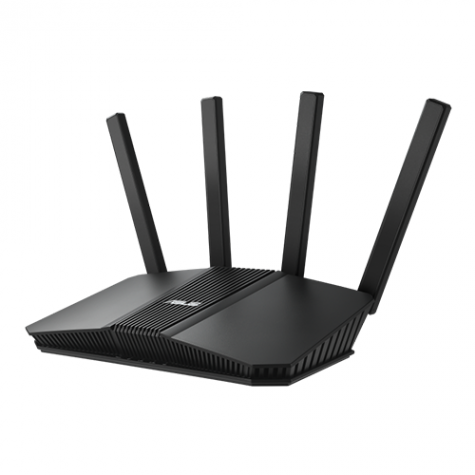

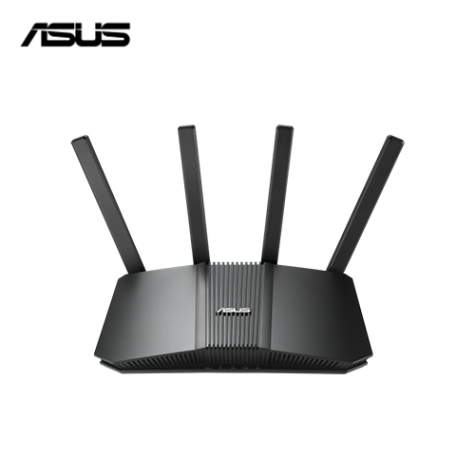

RT-BE58U
網路技術標準
IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

產品規格
BE3600 ultimate BE performance : 688+2882 Mbps

傳輸量
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
802.11g：最高 54 Mbps
802.11b：最高 11 Mbps
802.11a：最高 54 Mbps

天線
External antenna x 4

傳送 / 接收
5GHz 2x2
2.4GHz 2x2

處理器
2.0 GHz quad-core processor

記憶體
256 MB Flash
1 GB RAM

網速提升
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

運作頻率
5 GHz
2.4 GHz

Operating Mode
Wireless router mode
Access point mode
Media bridge mode

網路埠規格
1x 2.5G for WAN/LAN,
1x 1G for WAN/LAN,
3 x 1G LAN,
USB 3.2 Gen 1 x 1

按鈕
WPS Button, Reset Button, Power Button

LED 指示燈
Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1

電源規格
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current

包裝內容物
RT-BE58U
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

產品淨重(g)
461g

Product Dimensions
238 x 147 x 193 mm

獨家AiMesh技術
AiMesh, Primary AiMesh router, AiMesh node

家長貼心管理
Time Scheduling, Safe Browsing, Parental Control Customized Internet schedule

Guest Network
Guest Network, Support Guest Network, • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3

Security
AiProtection, VPN, WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection
AiProtection, AiProtection, Malicious site blocking, Two-Way IPS, Infected Device Prevention and Blocking

VPN
Instant Guard, VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP, VPN Server WireGuard

網路流量控制
Adaptive QoS, Bandwidth Monitor, Bandwidth limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, -- Maximum Traditional QoS Rule : 32, Traffic Monitor, Real-time traffic monitor, Wired Traffic Monitor, Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, Website history

WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, 3G/4G LTE dongle, 4G / 5G Auto Mobile Tethering, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN
DHCP Server, 有, IPTV, Manually assign IP address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)

其他無線功能
UTF-8 SSID, WiFi MAC address filter, • Maximum MAC Filters : 64, Wireless scheduler, Airtime fairness, RADIUS Server, Universal beamforming, Explicit beamforming

USB埠應用
4G / 5G Auto Mobile Tethering, File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Safely Remove disk, Download master, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder privileges

User Interface
WEB: ASUSWRT, APP: ASUS Router APP

管理功能
Configuration backup and restore, Diagnosis tools, Feedback system, System log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
