商品規格

型號
GT-BE19000AI
網路標準
Wi-Fi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6
產品區段
BE19000 ultimate BE performance: 1376+5764+11529 Mbps
數據速率
2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
5GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps
6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbps
天線
External antenna x 8
傳送/接收
2.4 GHz 4 x 4
5 GHz 4 x 4
6GHz 4x4
處理器
2.6GHz quad-core processor
記憶體
Router: 32GB Flash and 4GB RAM
AI core: 32GB Flash and 4GB RAM
Wi-Fi技術
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
網路頻段
2.4 GHz
5 GHz
6 GHz
Operating Mode
Router(AiMesh router), AiMesh node, Access point
連接埠
1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
1 x 10Gbps for LAN
3 x 2.5Gbps for LAN
1 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen1
1 x USB 2.0
按鍵
WPS Button, Reset Button, Power Switch, LED control Button
LED指示燈
WAN(Internet) x1
10G LAN x1
1G/2.5G LAN x1
WPS x1
6GHz x1
5GHz x1
2.4GHz x1
Power x1
電源
AC Input: 110V~240V(50~60Hz)
DC Output: 12 V with max. 5 A current
產品內容物

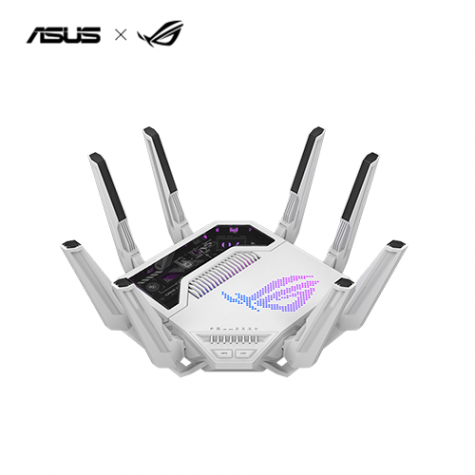

GT-BE19000AI tri-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
產品重量 (克)
2000 g
Product Dimensions
350.41 x 350.41 x 220.6 mm
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
遊戲
Mobile Game Mode
Gear Accelerator
ROG設備優先連線功能
具OpenNAT功能
Gaming專屬連接埠
Gaming Network
家長控制
Parental Control家長貼心控管
Web & Apps Filters
Time Scheduling
Reward
家長貼心控管 - 網路使用排程
• Maximum Parental Control Profile :
64
• Maximum Parental Control Content Filter Rule :
64
Guest Network
訪客網路
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
Support Guest Network Pro
• Maximum Guest Network Rule :
2.4 GHz + 5 GHz : 5
訪客網路連接限制
Guest Network Encryption :
Open system, WPA/WPA2/WPA3 Personal
Security
AiProtection
VPN
WiFi Encryption :
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter :
64
• Maximum Firewall Network Service Filter :
32
• Maximum Firewall URL Filter :
64
AiProtection
AiProtection
Router Security Assessment
Malicious site blocking
Two-Way IPS
• Advertisement Blocking
• Tracker Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
網路流量控管
Adaptive QoE
Bandwidth limiter
-- Maximum Bandwidth Limiter Rule :
32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period :
Daily, Weekly, Monthly
Website history
WAN
Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule :
64
Port Triggering
• Maximum Port Triggering Rule :
32
DMZ
DDNS
NAT Passthrough :
PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule :
128
Wake on LAN (WOL)
VLAN
無線相關規格
MU-MIMO
UTF-8 SSID
Wi-Fi MAC address filter
• Maximum MAC Filters :
64
Wireless scheduler
是
Airtime fairness
RADIUS Server
Universal beamforming
Explicit Beamforming
USB應用
4G / 5G Auto Mobile Tethering
File System :
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4
Safely Remove Disk
Media Server
Samba Server
FTP Server
Shared Folder Privileges
User Interface
WEB: ASUSWRT
APP: ASUS Router APP
Operating system :
ASUSWRT
管理
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
