商品規格

190142【AMD Ryzen5 7500F MPK【6核12緒】(3.7GHz(Turbo 5.0GHz)/ZEN4/65W/無外盒/含散熱器/代理商三年)】
Name
AMD Ryzen™ 5 7500F
Family
Ryzen
Series
Ryzen 7000 Series
Form Factor
Desktops, Boxed Processor
Market Segment
Enthusiast Desktop
AMD PRO Technologies
No
Regional Availability
Global
Former Codename
Raphael AM5
Processor Architecture
Zen 4
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 5 GHz
Base Clock
3.7 GHz
L1 Cache
384 KB
L2 Cache
6 MB
L3 Cache
32 MB
Default TDP
65W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
CPU Compute Die (CCD) Size
71mm²
I/O Die (IOD) Size
122mm²
Package Die Count
2
Unlocked for Overclocking
Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)
AMD Wraith Stealth
Thermal Solution (MPK)
AMD Wraith Stealth
Max. Operating Temperature (Tjmax)
95°C
Launch Date
07/22/2023
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Empty heading
Native USB 3.2 Gen 2 (10Gbps)
4
Native USB 3.2 Gen 1 (5Gbps)
0
Native USB 2.0 (480Mbps)
1
Native SATA Ports
0
PCI Express® Version
PCIe® 5.0
Native PCIe® Lanes (Total/Usable)
28 , 24
Additional Usable PCIe Lanes from Motherboard
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
A620 4x Gen3
NVMe Support
Boot , RAID0 , RAID1 , RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
128 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Empty heading
Graphics Model
Discrete Graphics Card Required============================================
199454【MONTECH XR 黑 全景玻璃機殼 (ATX/Type-C/內建風扇側2後1/無A柱/顯卡420mm/塔散175mm)】
型號 XR
顏色 黑 / 白
尺寸 (長*寬*高) 440*230*455mm (機殼) / 525*290*510mm (外箱)
主機板相容性 ATX / Micro-ATX / Mini-ITX
I/O介面 電源鍵 / 重啟鍵 / 麥克風孔*1 / 耳機孔*1 / USB3.0*2 / Type-C*1
PCIe擴充槽 7
預留安裝空間 CPU散熱器 175mm
顯示卡 420mm
電源供應器 230mm ATX
硬碟支援 (最大安裝數) 3.5” HDD 2
2.5” SSD 2
預裝風扇 側邊 120mm*2 (反葉ARGB PWM風扇)
後方 120mm*1 (GF120 ARGB PWM)
風扇支援 頂部 120mm*3 / 140mm*2
側邊 120mm*2
電源倉上方 120mm*3
後方 120mm*1 / 140mm*1
水冷支援 頂部 120 / 140 / 240 / 360mm
後方 120 / 140mm
防塵濾網 頂部 / 側邊 / 底部
EAN 4710562741421 / 4710562741476
保固 1年============================================
213076【微星 MAG A650BN (80+銅牌/ATX/直出/五年保固)-工業包】
============================================
218142【威剛 ADATA DDR5-5600 16G】
============================================
219276【鎧俠 KIOXIA EXCERIA PLUS G3 1TB/M.2 PCIe Gen4/讀:5000M/寫:3900M/TLC/五年保】
============================================
219555【技嘉 B650EM FORCE WIFI6E (M-ATX/1H1P/Realtek 2.5Gb/Wi-Fi 6E/註冊五年保) 8+2+2相供電】
============================================

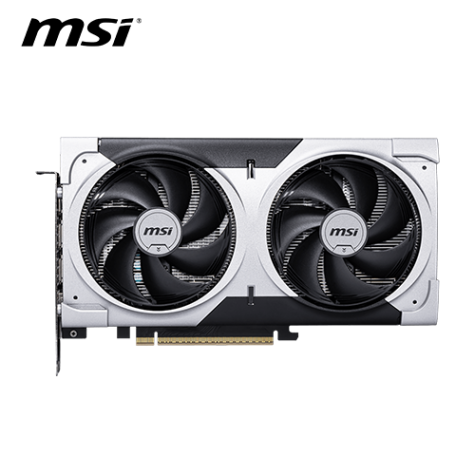

211376【微星 RTX 5060Ti 8G VENTUS 2X PLUS (std:2587MHz/雙風扇/註冊四年保/長22.7cm)】
