商品規格

213080【MONTECH Century II 850W (80+金牌/ATX3.1/ PCIe 5.1/智慧停轉/全模組/全日系/十年保固)】
型號 Century II 850W
瓦數 850
類型 ATX (140)
輸入電壓 全電壓
尺寸 (長*寬*高) 140*150*86mm
風扇 尺寸 135mm
軸承 FDB
工作溫度 0-50°C
保護 OPP / OVP / UVP / SCP / OCP / OTP
安規 BSMI / CB / CCC / CE / EAC / EMC / FCC&ICES / KC / KCC / LVD / RCM / RoHS2.0 / cTUVus / TUV / UKCA
EAN 4710562747263
保固 10年

交流輸入 100-240Vac 50-60Hz 10A Max
直流輸出 +3.3V +5V +12V -12V +5VSB
最大輸出電流 20A 20A 70.8A 0.3A 3A
最大瓦數 120W 849.6W 3.6W 15W
總功率 850W

類型 線條數 接口數
Motherboard 1 1 (20+4 Pins)
CPU 2 1 (4+4 Pins)
PCIe 2 2 (6+2 Pins)
12V-2x6 1 1 (16 Pins to 16 Pins)
SATA 2 4
Molex 1 4
SATA 3 4
Molex 1 4============================================
223111【Intel Core Ultra 7 270K Plus【24核24緒】(3.7GHz(Turbo 5.5GHz)/36M/Xe GPU/無風扇)【代理公司貨】】
============================================
220632【微星 PRO Z890-A WIFI (ATX/1H2P/Realtek 5G/WiFi 7+BT 5.4/專案註冊五年保) 16+1+1+1相電源】
Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 3x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio Realtek® ALC1220P
7.1-Channel High Definition Audio
Supports S/PDIF output
Storage 4x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt 2x Thunderbolt4 ports (Rear)
Support up to 40Gbps transfer rate with Thunderbolt devices
Support up to 20Gbps transfer rate with USB4 devices
Support up to 10Gbps transfer rate with USB 3.2 devices
Support up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Support up to 8K display
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN Realtek® 8126 5Gbps LAN
Internal IO 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x PUMP_SYS Fan
6x System Fan
1x ARGB+FAN+USB2.0 Header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
1x EZ Digit Debug LED============================================
220148【BIWIN DW100 RGB DDR5-6000 32GB(16G*2)黑(CL28)】
============================================
223770【宏碁 acer Predator GM6 1TB/M.2 PCIe Gen4/讀:7200M/寫:6300M/五年保(GM6-1TB)】
============================================
196945【技嘉 AORUS WATERFORCE II 360 鷹魂二代 (360mm/可旋轉水冷頭/12cm風扇*3/卡扣風扇/五年保)】
水冷排和水冷頭
尺寸 : 394 x 119 x 27mm
幫浦尺寸 : 72.8 x 72.8 x 65.1mm
水冷排材質 : 鋁
水冷頭材質: 銅
支援處理器腳座
Intel 115x,1200,1700
AMD AM5, AM4
水泵
Speed : 1600~3400 RPM +/-10%
風扇
規格 : 3 x 120mm ARGB風扇
轉速 : 800~2300 RPM +/-10%
軸承 : HDB
風流 : 64.95 CFM
風壓 : 2.93mmH20
噪音值 : 12.8~36.9 dBA
保固
5 年============================================
209248【技嘉 RTX 5070 EAGLE OC SFF 12G (std:2587MHz/三風扇/註冊五年保/長29cm)】
============================================

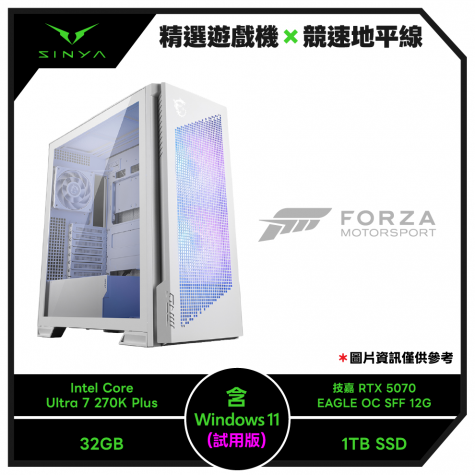

212084【微星 MPG VELOX 300R AIRFLOW PZ 白 玻璃透側機殼 (E-ATX/Type-C/內建風扇前2後1/支援(ATX)背插主板/顯卡400mm/塔散165mm)】
roduct Name
MPG VELOX 300R AIRFLOW PZ / WHITE

Case Form Factor
Mid-Tower

Motherboard Form Factor Support
"Regular:
EATX (up to 305 x 278mm), ATX, Micro-ATX, Mini-ITX

Back-connect:
ATX"

I/O Ports "
1 x USB 20Gbs (Type-C)
2 x USB 5Gbs (Type-A)
1 x Audio-Out / Mic-in
1 x LED Button
1 x Power Button"

Drive Mount Support
"4 x 2.5“
1 x 3.5“
1 x 2.5""/3.5"" combo"

Expansion Slots
7
Maximum GPU Length
400 mm / 15.75 inches

Maximum CPU Cooler Height
165 mm / 6.50 inches

Power Supply Support
ATX

Maximum PSU Length
200 mm / 7.87 inches

Fan Size Support
"Front: 3 x 120 mm / 3 x 140 mm / 2 x 160 mm
Rear: 1 x 120 mm
Top: 3 x 120 mm / 3 x 140 mm
Side: 3 x 120 mm

PSU Shroud:
2x120 mm

Bottom:
1 x 120 mm"

Pre-installed Fan Size
"Front: 2 x 160 mm
Rear: 1 x 120 mm"

Pre-installed Fan Type
"Front: 2 x ARGB Fan (Dual Layer Blades Fan)
Rear: 1 x Non-ARGB Fan ( Dual Layer Blades Fan)"

Dimensions (DxWxH)
485 x 235 x 518 mm / 19.09 x 9.25 x 20.39 inches

Radiator Size Support
"Front: 120 / 140 / 240 / 280 / 360 mm
Rear: 120 mm
Top: 120 / 140/ 240 / 280 / 360 mm
Side: 120 / 240 / 360 mm
Bottom: N/A"
