商品規格

194055【宏碁 acer Predator GM7 1TB/M.2 PCIe Gen4/讀:7200M/寫:6300M/TLC/五年保(單面設計)】
============================================
198041【SINYA C4U尊榮服務 (SINYA品牌桌機專屬/Windows終生免費重灌)】
============================================
204657【AMD Ryzen7 9800X3D【8核16緒】(4.7GHz(Turbo 5.2GHz)/ZEN5/含內顯/120W/代理商三年)】
名稱
AMD Ryzen™ 7 9800X3D
系列
Ryzen
系列
Ryzen 9000 Series
尺寸外型
桌上型電腦, 盒裝處理器
Market Segment
Enthusiast Desktop
AMD PRO 技術
否
區域供貨情況
全域
原代號
Granite Ridge AM5
處理器架構
Zen 5
處理器核心數
8
多執行緒 (SMT)
是
執行緒數
16
最大超頻時脈
高達 5.2 GHz
基本時脈
4.7 GHz
L1 快取
640 KB
L2 快取
8 MB
L3 快取
96 MB
預設 TDP
120W
處理器核心適用的處理器技術
TSMC 4nm FinFET
I/O 裸晶的處理器技術
TSMC 6nm FinFET
封裝裸晶數
2
已解鎖以進行超頻
是
AMD EXPO™ 記憶體超頻技術
是
超強精準頻率提升
是
曲線最佳化工具電壓偏移
是
AMD Ryzen™ Master Support
是
處理器插槽
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology
Precision Boost 2
指令集
x86-64
支援的延伸指令集
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
散熱解決方案 (PIB)
未隨附
Recommended Cooler
Liquid cooler recommended for optimal performance
最高工作溫度 (Tjmax)
95°C
推出日期
11/07/2024
*作業系統支援
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
連線
Empty heading
Native USB 3.2 Gen 2 (10Gbps)
4
Native USB 2.0 (480Mbps)
1
PCI Express® Version
PCIe® 5.0
原生 PCIe® 通道 (總共/可用)
28 , 24
NVMe 支援
Boot , RAID0 , RAID1 , RAID5 , RAID10
系統記憶體類型
DDR5
記憶體通道數
2
最大記憶體
192 GB
系統記憶體子類型
UDIMM
最高記憶體速度
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
支援 ECC
Yes (Requires mobo support)
顯示卡功能
Empty heading
顯示卡型號
AMD Radeon™ Graphics
顯示卡核心計數
2
顯示卡頻率
2200 MHz
USB Type-C® DisplayPort™ 備用模式
是============================================
209190【華碩 PRIME-RTX5070-12G (std:2542MHz/三風扇/註冊五年保/長30.4cm)】
============================================

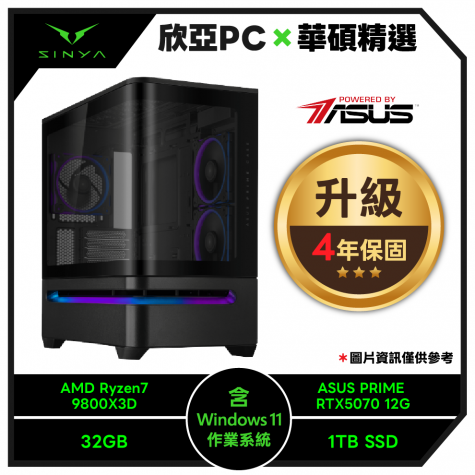

213944【華碩 Prime AP202 ARGB 黑 全景玻璃機殼 (M-ATX/Type-C/內建風扇側2後1/懸浮式進氣+燈條/曲面玻璃/顯卡420mm/塔散175mm)】
型號
ASUS Prime AP202 ARGB
主機板相容性
Micro-ATX
Mini-ITX
硬碟架
2 x 2.5 吋/3.5 吋組合機槽
擴充槽
4
前置 I/O 接口
1 x耳麥/麥克風
2 x USB 3.2 Gen1
1 x USB 3.2 Gen 2x2 Type C
一體式水冷相容性（頂部）
360mm
散熱支援（頂部）
3 x 120mm
2 x 140mm
散熱支援（後置）
1 x 120mm
預裝風扇（後置）
1 x 120mm
ARGB
Pre-Installed Fan (Side)
2 x 120 mm
ARGB
最大 CPU 散熱器高度
175 mm
最大顯示卡長度
420 mm
最大電源供應器長度
200 mm
可拆式防塵濾網
上
下
背部理線空間
30 mm
尺寸
441 x 236 x 460 mm
重量
9 Kg============================================
216311【華碩 TUF GAMING LC III 360 ARGB (360mm/ARGB冷頭/預裝風扇/一體式風扇/六年保固)】
型號
TUF Gaming LC III 360 ARGB
水冷頭
水冷頭尺寸：80.9 x 77 x 67.1 mm
散熱區材質（CPU 底座）：銅
散熱器
散熱器尺寸：397 x 120 x 27 mm
散熱器材質：鋁
管路材質：加護套橡膠管
管路長度：400 mm
風扇
- 風扇：TUF GAMING LC III 360 ARGB MF-12 FAN
- 規格：3 風扇插槽 (120mm)
- 尺寸：360 x 120 x 26.6 mm
- 風速：650 - 2600 ± 10% RPM
- 靜壓：3.82 mmH2O
- 氣流：90.78 CFM
- 噪音：37.4 dB(A)
- 控制模式：PWM/DC
特別功能
支援 AURA Sync：有
相容性
AMD: AM5,AM4
Intel: LGA 1851, 1700, 1200
內容物
1 x 水冷散熱器（預塗散熱膏）
1 x 螺絲和托架配件包
快速入門指南
1 x TUF GAMING 貼紙
保固
6 年
備註
TUF GAMING LC 系列
TUF GAMING Series============================================
219682【十銓 TEAM T-FORCE VULCAN DDR5-6000 32G(16G*2)-黑(CL38)】
============================================
220433【華碩 TUF GAMING B850M-PLUS II (M-ATX/1H1P/Realtek 2.5Gb/註冊五年保) 14+2+1相供電】
型號
TUF GAMING B850M-PLUS II
News & Updates

Please visit our GLOBAL website to check and download the latest updates.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD B850 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
RAID Support
AMD RAIDXpert2 Technology*
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.
Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
USB
Rear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A.
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
ASUS AI Advisor
ASUS DriverHub
- TUF GAMING CPU-Z
TurboV Core
DTS Audio Processing
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x TUF GAMING sticker
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Operating System
Windows 11, Windows 10 64-bit
Form Factor
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)============================================
223243【華碩 TUF GAMING 850W GOLD EVO (80+金牌/PCIe 5.1/ATX3.1/雙滾珠風扇/智慧停轉/防潮塗層/全模組/主日系/八年保固)】
============================================
187223【【組裝價】微軟Windows 11 Home 家用中文隨機版 64位元-OEM序號-KUK-00003(I7/R7/16G/1TB)】
