商品規格

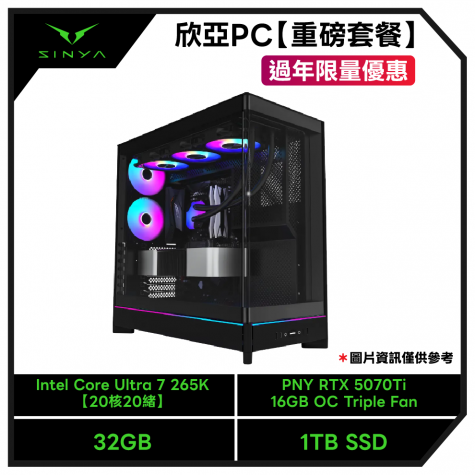

204348【【組裝價】Intel Core Ultra 7 265K【20核20緒】(3.9GHz(Turbo 5.5GHz)/30M/Xe GPU/無風扇)【代理公司貨】】
============================================
195077【美光 Crucial T500 1TB/M.2 PCIe Gen4/讀:7300M/寫:7000M/無散熱片/五年保*捷元代理商公司貨*】
============================================
190502【XPG 威剛 CORE REACTOR II 850W (80+金牌/ATX3.1/PCIe 5.1/全模組/全日系/十年保固)】
尺寸 (長 x 寬 x 高)
650W-850W: 140 x 150 x 86mm
1000W-1200W: 160 x 150 x 86mm
Cybenetics 分級
1200W: PLATINUM
1000W: PLATINUM
850W: PLATINUM
750W: PLATINUM
650W: PLATINUM
80 PLUS 分級
金級
ATX 版本
ATX 3.1
保護機制
OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP
安規
CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM
功率因數校正
> 0.99
輸入電壓
100-240V
輸入電流
1200W: 15A
1000W: 13A
850W: 12A
750W: 10A
650W: 10A
輸入頻率
650/750/850/1000/1200W:47Hz-63Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A
1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A
850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A
功率遽增
1200W：2820W (*最高可達 PSU 額定功率的 235%，持續 100μs)
1000W：2350W (*最高可達 PSU 額定功率的 235%，持續 100μs)
850W：1997W (*最高可達 PSU 額定功率的 235%，持續 100μs)
750W：1762W (*最高可達 PSU 額定功率的 235%，持續 100μs)
650W：1527W (*最高可達 PSU 額定功率的 235%，持續 100μs)
工作溫度
50°C
風扇尺寸
650W-850W: 120mm FDB Fan
1000W-1200W: 135mm FDB Fan
風扇軸承
FDB (流體動壓軸承)
風扇轉速
2400 RPM
平均故障間隔 (MTBF)
完整負載持續 100K 小時
ATX 24 Pin 接頭
1200W/1000W:1
850W/750W/650W:1
EPS 8 Pin 接頭
1200W/1000W:2
850W/750W/650W:2
PCI-E 6+2 Pin 接頭
1200W/1000W:8
850W/750W:6
650W:4
Molex 4 Pin 接頭
1200W/1000W:3
850W/750W/650W:4
12V-2x6 /12VHPWR (12 + 4) 接頭 (600W)
1200W/1000W/850W/750W: 1
12V-2x6 /12VHPWR (12 + 4) Connector (450W)
650W:1
SATA 接頭
1200W/1000W:9
850W/750W/650W:8
重量
1200W/1000W:
產品本體 + 線材：1.77kg+1.28kg
含包裝：3.43kg
850W/750W:
產品本體 + 線材：1596g+1254g
含包裝：3.1kg
650W:
產品本體 + 線材：1299g+1231g
含包裝：2.78kg
保固
10 年============================================
212009【MONTECH HS02 PRO 黑 全景玻璃機殼 (ATX/Type-C/內建風扇底3後2/支援背插主板/可翻轉式結構/顯卡400mm/塔散170mm)】
型號 HS02 PRO
顏色 黑 / 白
尺寸 (長*寬*高) 480*240*480mm (機殼) / 532*334*585mm (外箱)
主機板相容性 ATX /Micro-ATX / Mini-ITX (支援背插板)
I/O介面 USB3.0*2 / Type-C*1 / 麥克風孔*1 / 電源鍵 / 耳機孔*1 / LED鍵*1
PCIe擴充槽 7
預留安裝空間 CPU散熱器 175mm
顯示卡 420mm
電源供應器 200mm ATX / SFX
硬碟支援 (最大安裝數) 3.5” HDD 2
2.5” SSD 4
預裝風扇 底部 120mm*3
後方 120mm*2
風扇支援 頂部 120mm*3
底部 120mm*3
後方 120mm*2
水冷支援 頂部 120 / 240 / 360mm
底部 120 / 240mm
後方 120mm
防塵濾網 底部============================================
215680【狼蛛 AULA F108pro (黑+灰+黄) (收割者軸-繁中) ❰三模❱】
============================================
218731【MONTECH NX600 ARGB (6導管/12cm風扇*2/雙塔雙扇/高160mm)】
型號
顔色
NX600 ARGB
黑/白
尺寸
重量
120*132.5*160mm (塔散)/
203*146*200mm (包裝)
1440g
扣具支援
Intel
AMD
LGA115X / 1200 / 1700 / 1851
AM4 / AMS
熱管數
風扇數
轉速
畅拍承
電壓
接口
風量(最大)
風壓(最大)
噪音值(最大)
800~2000RPM (+10%)
HDB
12V
PWM 4Pin & ARGB 5V3Pin
85.09CFM
3.35mmH20
34.17dBA============================================
219274【美光 Crucial PRO DDR5-6000 32G(16G*2)(黑散熱片)(CL36/支援XMP&EXPO)】
============================================

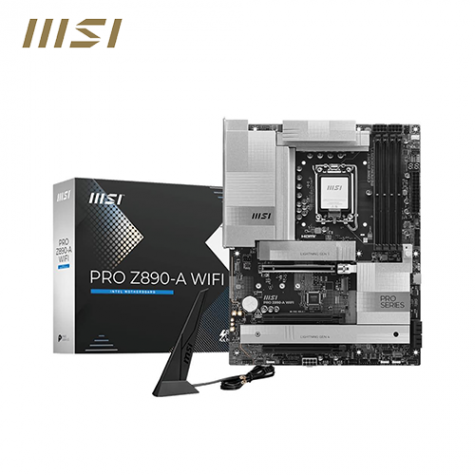

220632【微星 PRO Z890-A WIFI (ATX/1H2P/Realtek ALC1220P/WiFi 7+BT 5.4/專案註冊五年保) 16+1+1+1相電源】
Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 3x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio Realtek® ALC1220P
7.1-Channel High Definition Audio
Supports S/PDIF output
Storage 4x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt 2x Thunderbolt4 ports (Rear)
Support up to 40Gbps transfer rate with Thunderbolt devices
Support up to 20Gbps transfer rate with USB4 devices
Support up to 10Gbps transfer rate with USB 3.2 devices
Support up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Support up to 8K display
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN Realtek® 8126 5Gbps LAN
Internal IO 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x PUMP_SYS Fan
6x System Fan
1x ARGB+FAN+USB2.0 Header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
1x EZ Digit Debug LED============================================
208855【PNY RTX 5070Ti 16GB OC Triple Fan (std:2572MHz/三風扇/獨家五年保)】
